Fire Protection System
The project is equipped with a modern and synchronized fire protection system that complies with current regulations and the highest fire safety standards, including:
- Automatic fire alarm system.
- Automatic sprinkler fire extinguishing system.
- Emergency exit lighting and guidance system.
- Smoke extraction and anti-smoke duct system.

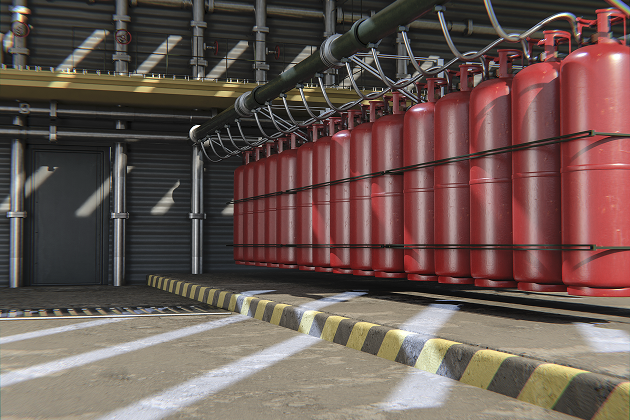

- FM200 gas-based fire suppression system.
- Smoke exhaust fan system.
With 5 smoke exhaust fans (Q = 90,000 m³/h; 500 Pa) and 1 fan (Q = 45,000 m³/h; 500 Pa), capable of withstanding temperatures of up to 30,000°C for 3 hours, ensuring complete smoke evacuation for the entire warehouse.
- Direct water supply system for indoor and outdoor fire fighting. The direct water supply system for indoor and outdoor fire fighting includes 6 fire pumps and 2 fire water tanks with capacity exceeding requirements for fire protection in a warehouse of dimensions 132×75m.
- Internal hydrant system.
- Fireproof wall system.
Fire Pump Station
The fire pump station includes 02 electric motor-driven fire pumps (200kW) with a flow rate of Q = 148L/s, head pressure H = 90m.w.c, and 01 jockey pump:
- Always supplied with priority and backup power by a 560KVA generator.
- The electrical cabinet system, equipped with protective and start-up devices from Schneider, along with fire-resistant cables, ensures continuous operation of the pump station.
